V Bucket
Mongo Attachments V Bucket

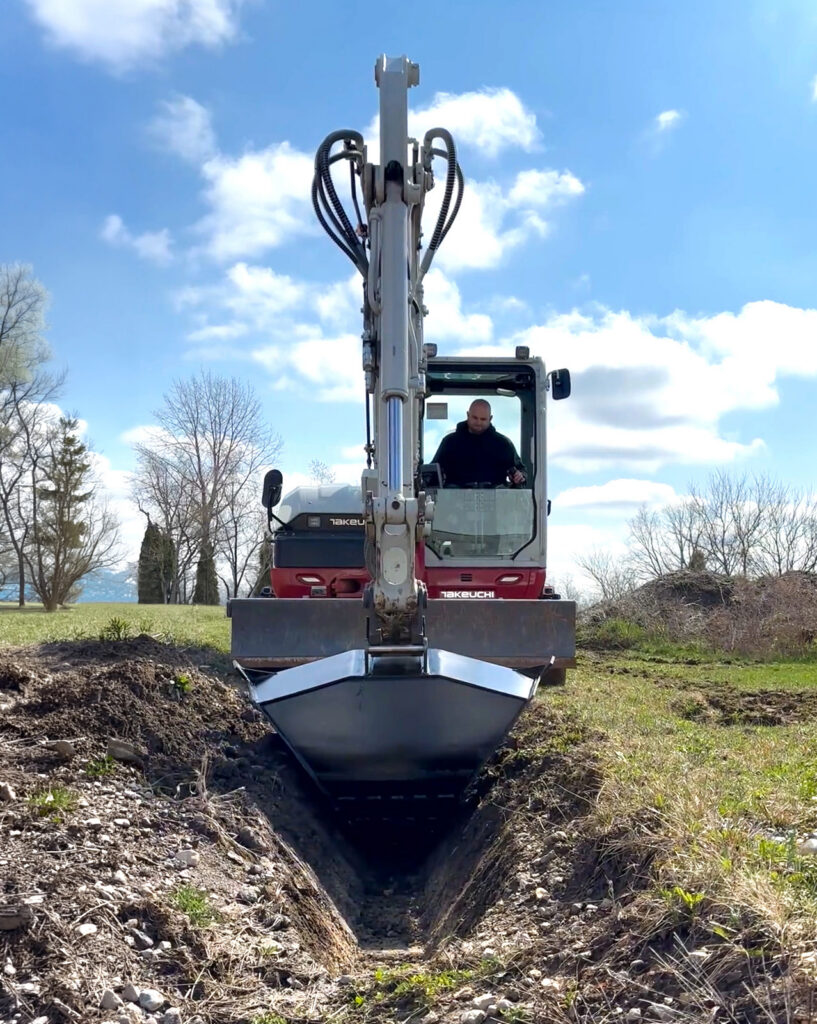

The Mongo Attachments V Bucket is the fastest and easiest way to dig drainage ditches available. The 45 degree side slope provides excellent bank retention in most soil types. The bucket’s most popular uses are with land improvement contractors, county highway departments and general excavation contractors. Equipped with rear wear strips and AR400 steel digging edge for maximum durability. Custom machine mount included. Available in two models:
MVB-4
- For 3-5 ton machines
- Bottom Trench Width: 8.5″
- Top Width: 51″
- Bucket Weight: 200 lbs
- Struck Capacity: 7 CF
- For 6-9 ton machines
- Bottom Trench Width: 12.5″
- Top Width: 63″
- Bucket Weight: 440 lbs
- Struck Capacity: 10.2 CF

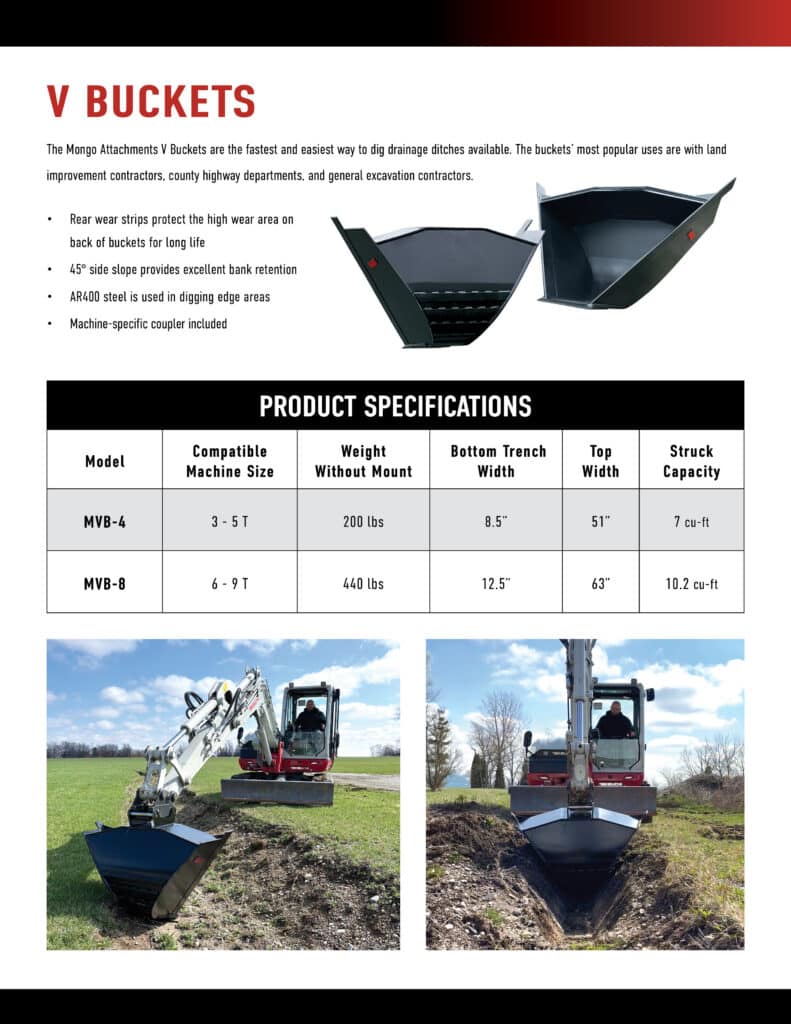

| Model | Compatible Machine Size | Bottom Trench Width | Top Width | Bucket Side Slope | Bucket Weight | Struck Capacity |
|---|---|---|---|---|---|---|
|
MVB-4 |
3 – 5 T |
8.5” |
51″ |
45° |
200 lbs |
7 CF |
|
MVB-8 |
6 – 9 T |
12.5” |
63” |
45° |
440 lbs |
10.2 CF |
